HCB YACHTS

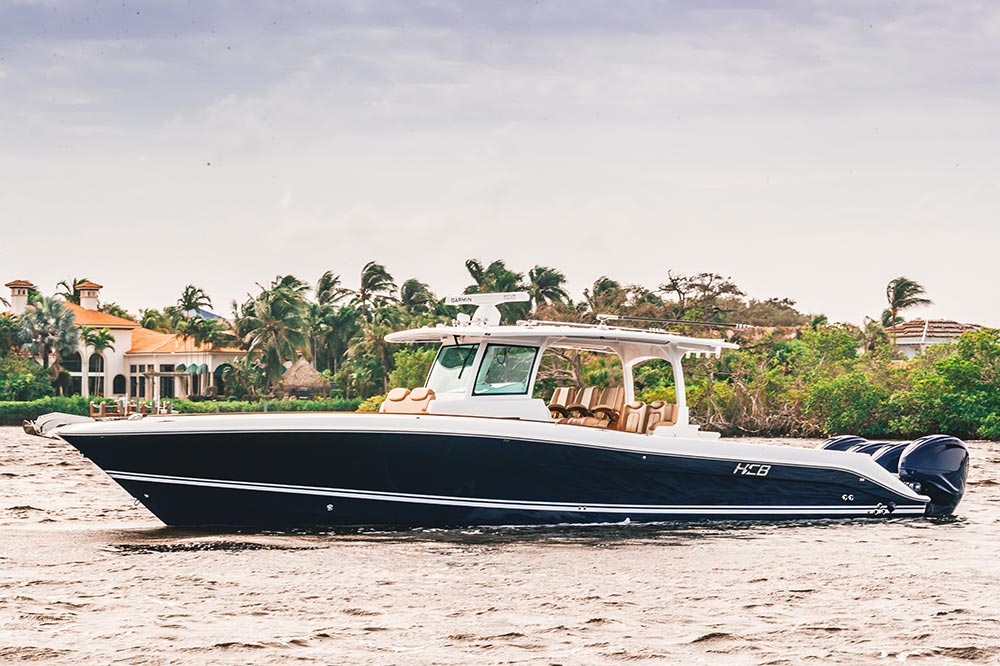

42′ Lujo
FORTY TWO FOOT
Few yachts combine the size, attitude. And versatility to truly dominate the water like our 42′ LUJO. Refined, gutsy, and classy-all at the same time.
- Length without Engines: 41’ 7”
- Length with Engines: 45’ 7”
- Beam: 12’ 2”
- Deadrise: 23 Degrees
- Dry Weight: 24,000 lbs
- Horsepower Rating: 2000 HP Max
- Fuel capacity: 614 gallons (Optional Upgrade – 745 gallons)
- Freshwater capacity: 40 gallons
- Live well capacity: 2 @ 45 gallons each
- Draft, engines up/down: 24”/34”
- Bridge Clearance with Radar: 10’
CONSTRUCTION:
- EPA compliant fuel system
- Full Composite Construction
- Hand-laid Fiberglass Lamination utilizing Premium Gelcoat Finish
- 100% Vinylester on all fiberglass laminates
- Vinylester barrier coat
- Pre-cut stitched Bi-Axial structural fabric
- KEVLAR® reinforcement
- Ceramic Transom Pour
- Integrated Fiberglass Structural Grid system, bonded to hull with methacrylate adhesive, injected with urethane foam
HULL AND DECK:
- Anchor locker – self-draining<
- Bilge compartment lighting, LED
- Labels for all electrical and mechanical components
- Bow and stern eyes – stainless steel
- Bow rail – Polished 316 Stainless Steel
- Cleats (7) – 10” stainless steel, pop up
- Drink holders in Gunwales – stainless steel (4)
- Hawse pipes with dock cleats (2), aft
- Heavy-duty dive ladder (1), telescoping
- Hose, wire reinforced
- Rod holders (16) – stainless steel gunwale mount with s/s backing plates
- Rod holders-Deep Drop Swivel gunwale mount (4) with s/s backing plates
- Rod storage in gunwale, port & Starboard side cockpit (4 per side)
- Thru-hull fittings – bronze – below waterline
- Thru-hull fittings – stainless steel – above waterline
- Underwater Side lighting/ Spectrum RGBW (2) Port & Starboard
- Fender Cleats (6)
COCKPIT:

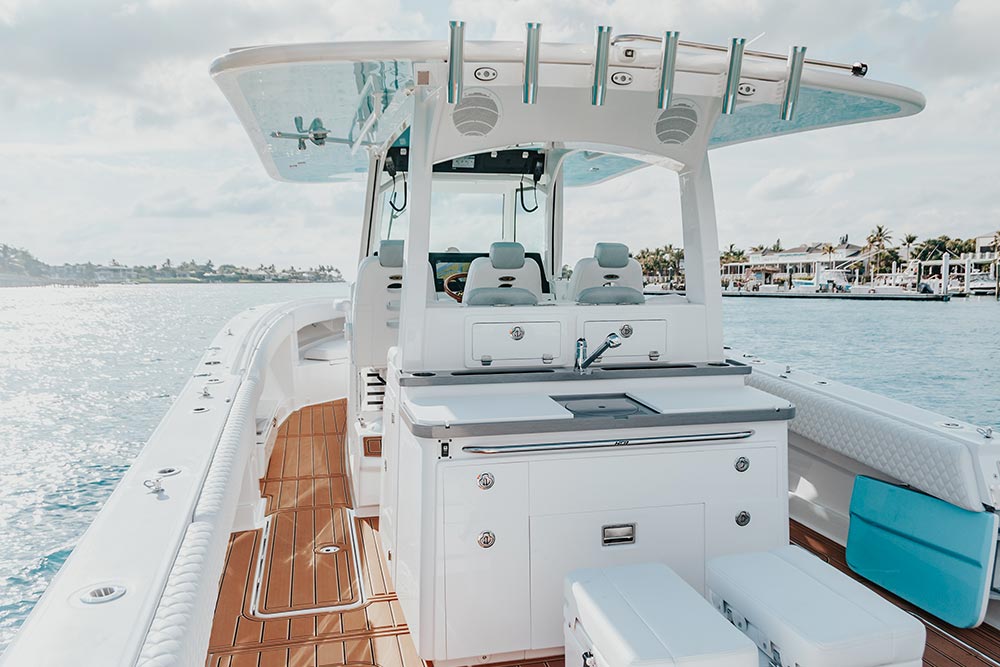

- Summer Kitchen with Corian countertop, sink, stainless steel gas grill (removable), 12-volt refrigerator and cutting board
- Premium Grade personalized Upholstery w/custom colors
- Bow cushions
- Gear storage in forward battery compartment
- Cockpit bolsters
- Courtesy lights – LED RGBW
- Drink Holders in cockpit – stainless steel (14)
- Fully Insulated Bow Fish boxes – (2) forward, above deck with overboard drain
- Fully Insulated Aft fish boxes – (2) in-floor – with overboard pumps
- Gunwale Insulated Coolers Port / Stbd, Frigid Rigid (Optional fuel upgrade will delete Port Cooler)
- Livewells – Dual transom, 45 gallons each, with (2) 2500gph Hooker Electric Variable Speed primary pumps and (2) 2500gph Hooker Electric Variable Speed back up pumps
- Self-draining cockpit with oversized scuppers
- Hardtop, Oversized fiberglass, with rod holders (7), Aft spreader lights (3), and overhead lights RGBW (10), Fwd. Spreader Lights (2)
- Industrial Grade Coating for Durability on Hardtop Frame, Faired Welds
- Transom door with heavy duty latch
- Transom seat, bottom cushion and backrest – fold away
- Tuna/ Dive/ Utility Door, Starboard side, opens in to allow for usage while docked
- Cockpit Shower – Fresh water integrated into Hardtop frame
- Hardtop Grab rails Port & Stbd
- LED Remote spotlight with dash mounted control and wireless remote
- Mast Head Light, folding
- Diamond Non-Skid on Deck and Hardtop
- Floor lights – Warm White
- Garmin Triple displays with dual chirp transducers, (1) 8616 screen and (2) 8612 screens, with integrated maps
- Garmin xHD2 4’ 4KW open array radar
- Auto Pilot (Yamaha/Mercury
- VHF radio, handset with remote speaker (Garmin/ICOM)
- Garmin GSD 26 – Sonar
- Transducers – Dual 1KW Each (Airmar)
- Stereo System: Garmin Fusion Apollo Head unit, Sirius XM radio receiver/antenna, JL Audio Flush Mounted Luxe Speakers – Total of 6.5” Speaker (2), 7.7” Speaker (2), 8.8” Speaker (4), 10” Subwoofer (2), Tweeters (2)
- Quad Yamaha 425 HP with Helm Master
- Joystick control with all Engine Options
- Control – binnacle mount digital throttle and shift
- Fuel tanks – aluminum Port (100 gal), STBD (100 gal), Center (414 gal) fuel Capacity
- Fuel/water separators
- Fuel management/manifolds, 1 manifold per engine (Run any Engine off any tank)
- Propellers – stainless steel
- Windlass: Stainless Steel 35lbs Plow Anchor, rope (100 ft)/Chain (300 ft) Combo, control at the bow and helm
- Trim tabs – SS trim tab with dual actuators
- Bow Thruster – 12V, 132lbs Thrust
- Remote Engine Flush Manifold
- Battery parallel switch at helm for all Engine batteries
- House batteries – 5 Odyssey AGM group 31 batteries (2 in House bank one and 3 in House bank two)
- Engine batteries – 1 Odyssey AGM group 31 battery per engine
- Bow thruster/Windlass Batteries – 1 Odyssey AGM group 31 battery
- Engine battery charger – 4 banks, 36A
- House battery chargers – 60A (2)
- Electrical wiring – 12-volt system with circuit breakers and connections (ABYC & CE Certified) utilizing tinned copper wire
- Electrical panels – Engine Panel, Main DC (12V) panel and AC (120V) panel
- Bilge pumps with automatic float switches (4), (2) 2200 gph aft, (2) 750 gph fwd
- High Water Alarm in Aft Bilge
- Bonding System all metal components below water line, Aluminum anodes
- Shore power inlet -Transom Mounted, 30 AMP with 50′ cord and cord reel, powered feed In/Out
- Fresh water system – 40-gal tank with level gauge
- Fresh water wash down. 20’ retractable hose reel, mid ship, portside
- Fresh water Pump. 5.0 gpm with pressure switch
- Raw water wash down with quick connect hose connections, (2) bow and stern
- Raw water wash down. 20 retractable hose reel, mid ship, stbd side
- Raw water Pump. 5.0 gpm with pressure sensitive switch
- Hoses – Steel-reinforced and double- clamped throughout
- Navigation lights – LED
- Sealed aft deck access hatch with accessibility to pump room and mechanical room with compression latches
- Water ready – (Batteries and Props installed, engine oil filled, Fuel)
- SeaKeeper 3 Ready
